Standard Profiles

U Profile	A	B	S (mm)	R	Kg/M
10067	18	16		1	0.130
1501	20	20		1.5	0.231
4832	22.4	20		1.1	0.179
4053	24.2	25		1.6	0.309
10041	26	16		1	0.152
10042	34	16		1	0.174
2450	46	33	6	3	0.832
4841	120	10		1.2	0.448

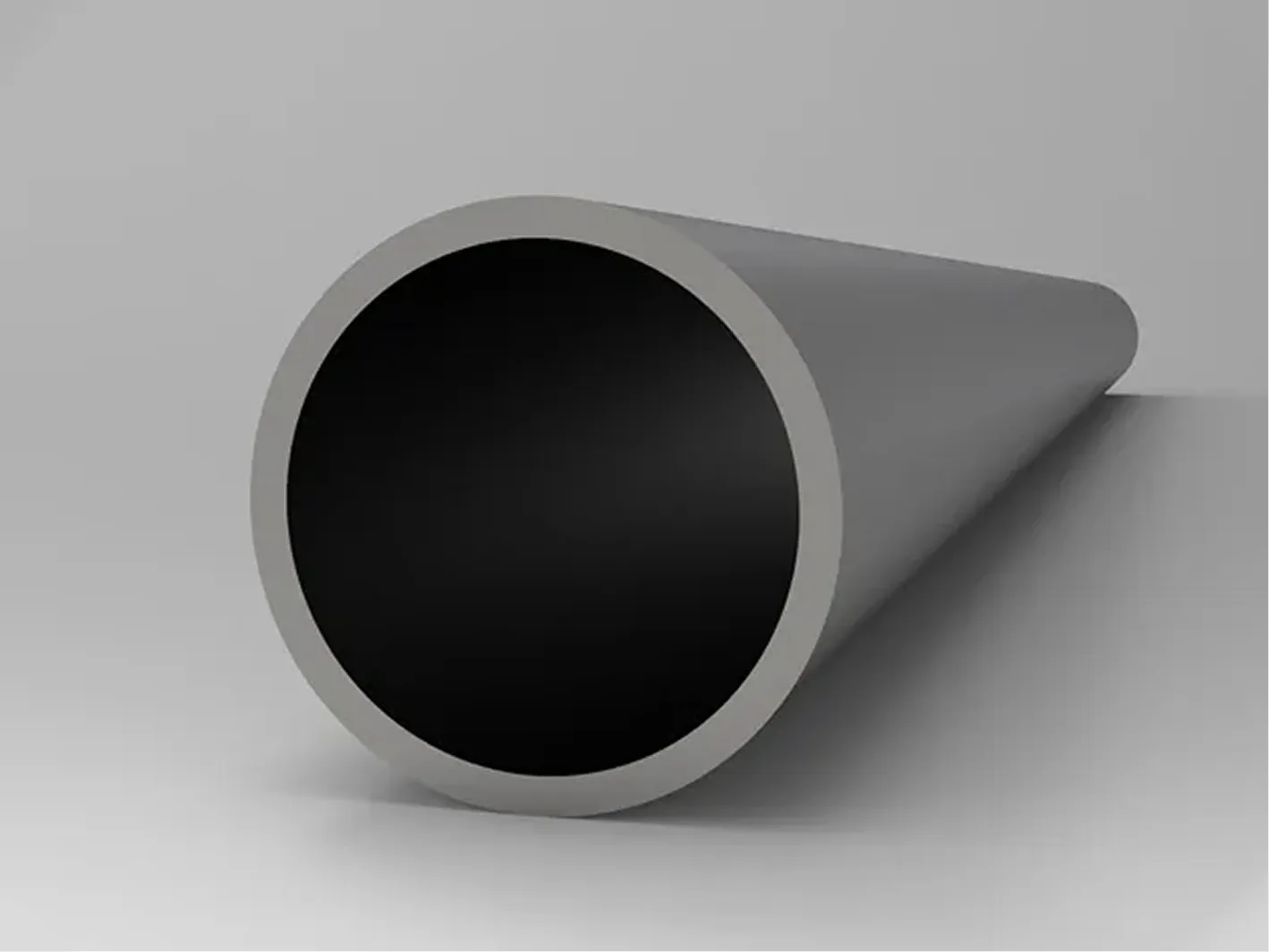

Pipe	Diameter Ø	S (mm)	Kg/M
2114	8	0.85	0.052
2110	8	1	0.060
2109	10	1	0.077
2120	10	2.5	0.160
2121	13	1.2	0.121
2112	14	1.2	0.130
2100	16	1.1	0.140
2133	16	1.3	0.163
2101	16	1.5	0.185
2102	19	1.2	0.182
2119	22	1	0.179
2127	22.3	0.9	0.164
2132	23	1.5	0.275
2135	24	1	0.196
2148	24.9	1.2	0.241
2130	25	1	0.204
2149	25	1.2	0.243
2111	25	1.2	0.243
2118	25	1.5	0.300
2115	25	2	0.393
2141	25.15	1.2	0.245
2126	25.5	0.9	0.189
1000	25.5	1.15	0.239
2125	28.4	0.9	0.211
5502	29.7	2.3	0.526
2123	30	2	0.477
2144	32	1.4	0.366
2142	32.5	1	0.268
2122	32.6	1	0.269
2113	35	1.3	0.373
2145	35	1.5	0.428
2104	35	1.7	0.482
2103	35	2	0.561
2105	35	3	0.818
2146	39.8	3	0.940
2140	40	1.5	0.492
2147	45.3	2.5	0.905
2138	48	3.5	1.326
2106	50	1.2	0.499
2107	50	1.5	0.620
2128	50	1.8	0.739
2108	50	2	0.817
2116	60	3	1.455

Bracket	A	B	S (mm)	Kg/M
2027	15	15	1.1	0.086
2000	15	15	2	0.151
2046	20	10	1.5	0.116
2009	20	20	1.1	0.116
2001	20	20	2	0.206
2045	25	15	1.5	0.157
2010	25	25	1.1	0.145
2017	30	10	1.1	0.116
2002	30	10	2	0.206
2018	30	20	1.1	0.146
2003	30	20	2	0.260
2004	30	30	1.1	0.176
2014	30	30	1.5	0.238
2015	30	30	2	0.315
2005	40	10	1.1	0.146
2006	40	20	1.3	0.207
2011	40	30	1.2	0.225
2007	40	40	1.2	0.257
2024	40	40	1.5	0.317
3580	40	40	1.75	0.369
2016	40	40	4	0.824
2012	50	30	1.2	0.256
2019	50	50	2	0.531
2008	60	10	1.2	0.224
2021	60	20	1.2	0.256
2013	60	30	2	0.477
2022	80	20	1.2	0.321
2044	80	80	5	2.100
2043	80	80	6	2.503
2023	120	40	1.8	0.767

Box	A	B	S (mm)	R	Kg/M
2200	10	10	1		0.097
2250	14	14	1.2		0.165
2511	14	14	1.5		0.204
2520	17	12	1.5		0.212
2206	20	10	1.4		0.206
2215	20	20	1.2		0.245
1050	20	20	1.5	3	0.285
2202	20	20	1.8		0.355
2207	25	17	1		0.217
2203	25	25	1.3		0.334
3557	28.6	13.6	1		0.214
3214	29	29	1	2	0.297
2235	30	15	2		0.444
2251	30	20	1.2		0.309
2219	30	20	1.9		0.476
2204	30	30	1.5		0.464
2214	30	30	2		0.607
2208	40	20	1		0.314
2218	40	20	1.9		0.579
2230	40	20	2		0.607
2225	40	30	1		0.369
3459	40	30	1.5	1.5	0.539
2209	40	30	2		0.715
2205	40	40	1.2		0.505
2253	40	40	1.5		0.626
3215	50	20	1	4	0.353
3491	50	20	1.3	4	0.455
2240	50	20	1.5		0.545
2236	50	20	2		0.715
2211	50	25	1.5		0.585
2252	50	30	1.5	2	0.618
2242	60	20	1.3		0.545
2220	60	20	1.9		0.785
3490	60	30	1.3	4	0.596
2234	60	30	2		0.932
2245	60	30	3		1.366
2224	60	40	1.3		0.686
2226	65	50	2.2		1.320
2246	68.5	38.5	4		2.146
3493	75	30	1.3	4	0.702
2213	75	32	1.5		0.846
2221	75	32	1.9		1.062
1049	80	20	2	3	1.023
2201	80	40	1.5		0.952
1048	80	40	2	3	1.239
2247	80	40	4		2.428
2243	84	44	1.5		1.016
2244	85.8	55.6	1.8	2.8	1.328
2227	86	50	2.2		1.569
2248	88.5	48.5	4		2.797
2212	95	50	1.5		1.155
3489	100	50	1.3	4	1.016
2210	100	50	1.5		1.196
2239	100	50	2.2		1.737
2228	128	50	2.2		2.070
2223	136	136	1.8	2	2.610
2249	150	50	2	1	2.122
2231	150	80	2.8	2.5	3.391
